Import Data from Version 4

Unhide the V4 import button

Navigate to the Options dialog either from the File or Utilities tab in the ribbon menu.  Within the Admin tab, click on the [Feature Visibility] button.  In the 'Hide Checked Features' dialog click on the [App Utilities] tab and uncheck the 'Import Group' box; the 'Version 4 Data' should be unchecked automatically.

Unhide V4 Import Button

Restart Calibration Control to make the 'Version 4 Import' button visible.

Import Data

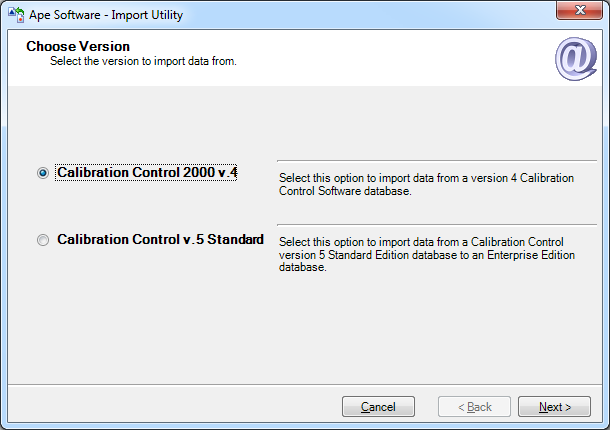

Begin the import process by selecting 'Version 4 Data' from the Utilities tab of the ribbon menu.

Version 4 Data in the Ribbon Menu

Source Directory

Click the [Browse] button and navigate to the Access file you need to import and then click [Next].

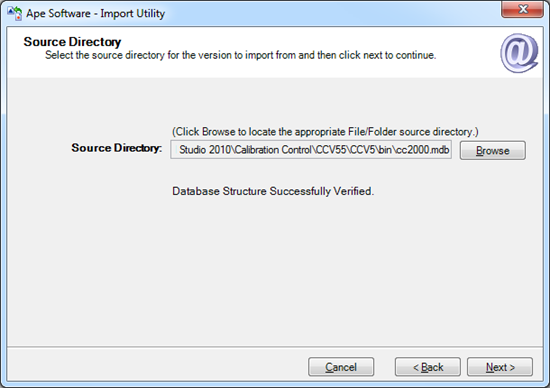

Import Source Directory

Transfer Data

Note that if you try to import records from the source database to the current database and the record already exists, the import process will ignore those records.  For instance, if one of the equipment records has an ID of '121' and your current database has a MasterID of '121', then record 121 will be ignored.  Therefore, correct ID discrepancies before transferring data.

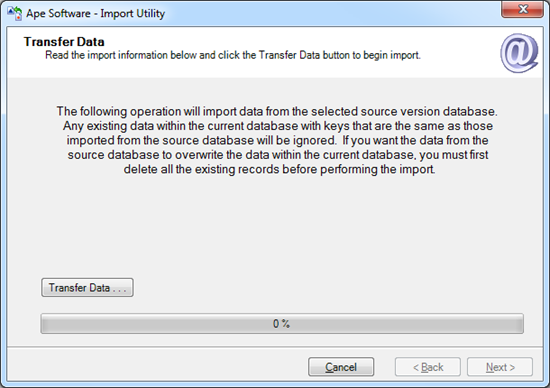

Import Transfer Data

Last updated: 6 Feb 2017

Compatibility: Calibration Control 8.9.9 & higher
